What is the Stress and Strain of a Bar?
Stress and strain are fundamental concepts that are used to describe how a body responds to external loads. We have a solid metal bar that is loaded by two equal but opposite forces. We refer to this as uniaxial loading, because all of the applied loads are acting along the same axis.
The two forces are pulling the bar, causing it to stretch. Internal forces will develop within the bar to resist these applied forces. We can expose these internal forces by making an imaginary cut through the bar. I chose to remove the right side of the bar, but I could have removed the left side instead. For any imaginary cut like this one, the internal forces develop in such a way that equilibrium will be maintained.
In this case, the effect of the internal forces acting on the cross-section created by our cut will be equal to the effect of the applied external force. I have represented the internal forces as4 separate forces here, but I could have represented them as one or even 20 forces. In reality, the internal forces are distributed over the entire surface of the cross-section.
For this reason, it doesn’t make much sense to talk about specific internal forces. Instead, it is better to talk about stress. Stress is a quantity that describes the distribution of internal forces within a body. It makes it easier to discuss the internal state that develops within a body as it responds to externally applied loads.
Stress is a measure of the internal force per unit area, and so has units of Newtons per meter squared in SI units and pounds per square inch in US units. Newtons per meter squared are also called pascals. In the case of our axially loaded bar, the internal forces are acting perpendicular to the direction of the cut we made. This type of stress is called normal stress.
We can calculate the normal stress in our bar as the applied force F divided by the cross-sectional area A of the bar. It is denoted by the Greek letter sigma. One reason being able to calculate stresses is important is because it allows us to predict when an object will fail.
Let’s say our bar is made from mild steel, which has a strength of 250 MPa. The bar will fail when the stress within it exceeds the strength of the material. If our bar has a diameter of 20 mm, for example, we can calculate that it will fail if the applied force is larger than 79 kN.
Normal stress can be either tensile or compressive. In this case, the stress is tensile because the forces are stretching the bar. If the forces were trying to shorten the bar, we would have compressive stress. The sign convention that is normally used is that tensile stresses are positive values and compressive stresses are negative values.
In the case of our bar, it is reasonable to assume that the stresses are distributed uniformly across the cross-section and along the length of the bar, but this is a very simple scenario. The stress distribution in a beam that is bending, for example, will be more complex. Stresses will be tensile on one side of the cross-section, but compressive on the other.

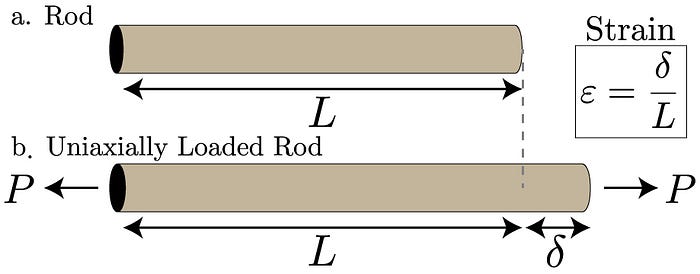

The strain is a quantity that describes the deformations that occur within a body. If we fix our bar at one end and apply a force to the other end, the force will cause the bar to deform. The normal strain within our bar associated with this deformation can be calculated as the change in length of the bar Delta-L divided by the original length L.
The strain is a non-dimensional quantity and is often expressed as a percentage. Normal strains can be tensile or compressive. I mentioned earlier that the concepts of stress and strain are closely linked. The relationship between the two can be described using a stress-strain diagram.
Stress-strain diagrams are different for different materials. We can obtain the diagram for a specific material by performing a tensile test. This involves applying a known force to a test piece and measuring the stress and strain in the test piece as the applied force is increased. Stress-strain diagrams for ductile materials like this one show that there is an initial region for low strain values where the relationship between stress and strain is linear.
Deformations occurring in this region are fully reversed when the load is removed, and so are said to be elastic. This linear relationship between stress and strain is defined by Hooke’s law. The ratio between stress and strain is called Young’s modulus, which is an important material property. Hooke’s law usually only applies to small strains. For larger strains, the relationship between stress and strain is no longer linear.
Deformations are not reversed when the load is removed, and we have permanent plastic deformation. So far we have only talked about normal stress, which is stress acting perpendicular to a surface. The other type of stress is shear stress. If our bar isn’t loaded along its axis, but instead perpendicular to its axis, like this, the internal forces that develop within are oriented parallel to the bar’s cross-section.
These internal forces are called shear forces. Shear loading is common in bolts, for example. Once again it is helpful to use the concept of stress to talk about the internal shear forces within the bar. Shear stress is denoted by the Greek letter tau and can be calculated in a similar way to normal stress, as the applied force F divided by the cross-sectional area A.
This is actually average shear stress since the internal forces will not be distributed evenly across the cross-section. We can better understand shear stresses by looking at the stresses acting on a small element within our bar. We have shear stress on one face of the element. But the element needs to be in equilibrium, so we must also have shear stress on the opposite face, in the opposite direction. And to maintain rotational equilibrium we must also have two additional shear stresses, as shown here.
These four stresses all have a magnitude equal to tau and define the shear stresses acting at a single location. Shear stresses cause a rectangular object to deform like this. We have deformation, so of course, we also have strain. Shear strain is defined as the change in angle and is denoted by the Greek letter gamma. Hooke’s law also applies for shear stresses and shear strains, but the ratio between them is the shear modulus G instead of Young’smodulus.
Although I have discussed normal and shear stresses separately so far, the stress state at a single point within a body will actually have components in both the normal and the shear directions. The magnitudes of the normal and shear components will depend on the angle of the plane we are using to observe the stresses. In our bar with uniaxial loading, the plane we used to make the imaginary cut was perpendicular to the axis of the bar, and so we had normal stresses but no shear stresses.
If we instead use an inclined plane to cut the bar, we will have both normal and shear stress components. The stress element is commonly used to represent the stresses acting at a single point within a body. This is the stress element showing the normal and shear stresses acting at a single point for a two-dimensional case.
For a three dimensional case, the stress element looks like this. That’s it for this introduction to stress and strain. Having a solid understanding of this concept will be important for grasping more advanced topics like torsion and beam bending.
